Filter Elements

Filter elements represent a special type of dashboard item that allows you to apply filtering to other dashboard items.

To create a Filter dashboard element, click the icon:

The following filters are available in the drop-down list:

• Combo Box – the Combo Box dashboard item allows to select a value(s) from the drop-down list

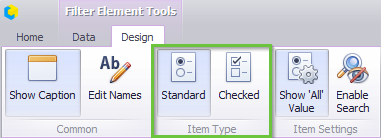

• Standard – allows to select only a single value:

• Checked – allows to select multiple values in the invoked drop-down list:

• List Box – the List Box dashboard item allows to select a value(s) from the list

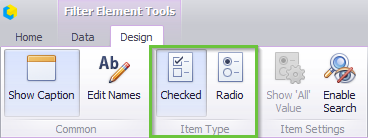

• Checked – allows to select multiple values in the list box

• Radio – allows to select only a single value in the radio group

In addition, there is a possibility to enable filtering for all elements:

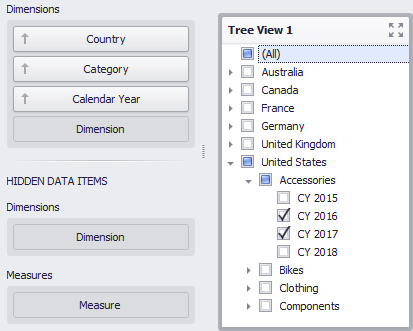

• Tree View – the “Tree View” dashboard item displays values in a hierarchical way and allows to expand/collapse nodes

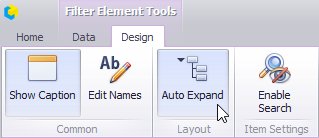

You can manage the initial expanded state of filter values using the “Auto Expand” button in the “Design” ribbon tab:

Auto Expansion – the tree will be in the expanded state.

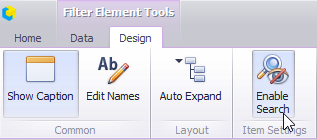

For all types of filter available quick search:
